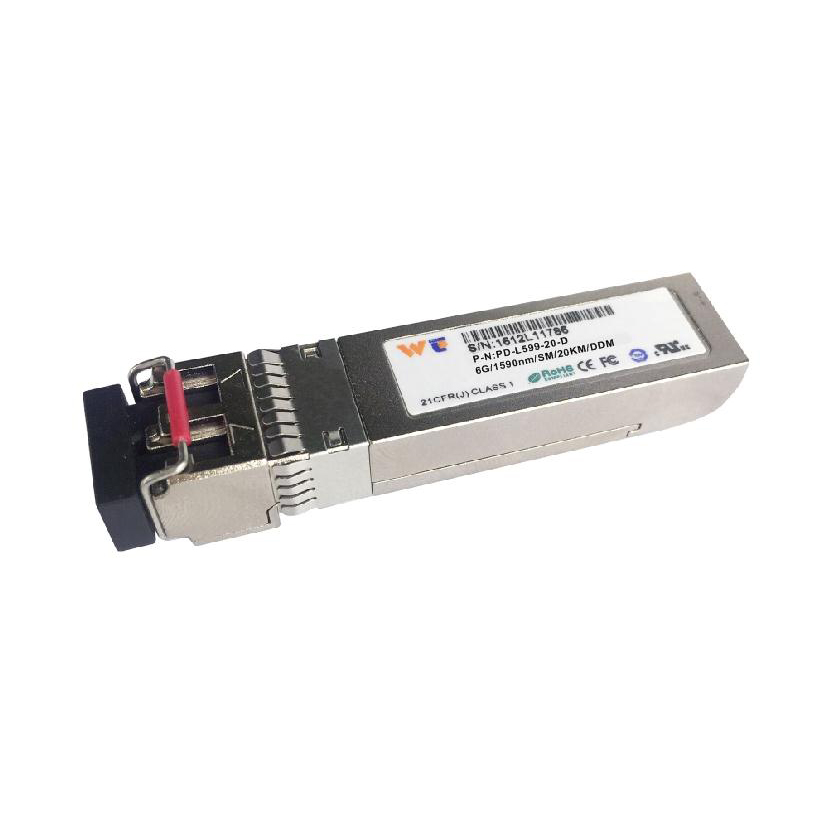

6Gb/s CWDM 20KM SFP+ Transceiver

型号： WT-SFP+-6G-CWDM-DML-20KM

PD-L**9-20-D 6Gb/s CWDM 20KM SFP+ Transceiver

产品描述技术参数应用方案相关下载相关产品

Feature

l Hot-pluggable SFP+ footprint

l Supports up to 6.0Gb/s bit rates

l Power dissipation < 1.5W

l Single 3.3V power supply

l Maximum link length of 20km

l CWDM wavelength DML transmitter, PIN photo-detector

l Duplex LC connector

l Power dissipation < 1.5W

l Built-in digital diagnostic functions

l Case temperature range ：-5°C to 70°C

l Optical Transmission Network

Outline Dimensions

标签： SFP+光模块

Optical Characteristics

Parameter	Symbol		Min.	Typ.	Max.	Unit	Note
Transmitter
Average Launched Power	PO		0		+5	dBm	Note (1)
Extinction Ratio	ER		3.5			dB
Center Wavelength	λc		1270		1610	nm
Center Wavelength Space				20		nm
Spectrum Band Width (RMS)	σ				1.0	nm
SMSR			30			dB
Transmitter OFF Output Power	POff				-40	dBm
TX Jitter (peak-peak)	Txj				0.1	UI
TX Jitter (RMS)	Txjrms				0.01	UI
Transmitter and Dispersion Penalty	TDP				3.0	dB
Output Eye Mask	Compliant with IEEE 0802.3ae
Receiver
Input Optical Wavelength		λ	1270		1610	nm
Receiver Sensitivity					-14	dBm	Note (2)
Input Saturation Power (Overload)		Psat	0.5			dBm
LOS Detect -Assert Power		PA	-32			dBm
LOS Detect - Deassert Power		PD			-15	dBm
LOS Detect Hysteresis		PHYS	2			dB

Note：

1. Launched power (avg.) is power coupled into a single mode fiber with master connector.（Before of Life）

2. Measured with conformance test signal for BER = 10^–12.@6.0Gbps, PRBS=2^31-1,NRZ

有关详细信息，请在“相关下载”中查看数据表.
