PRODUCT FEATURES

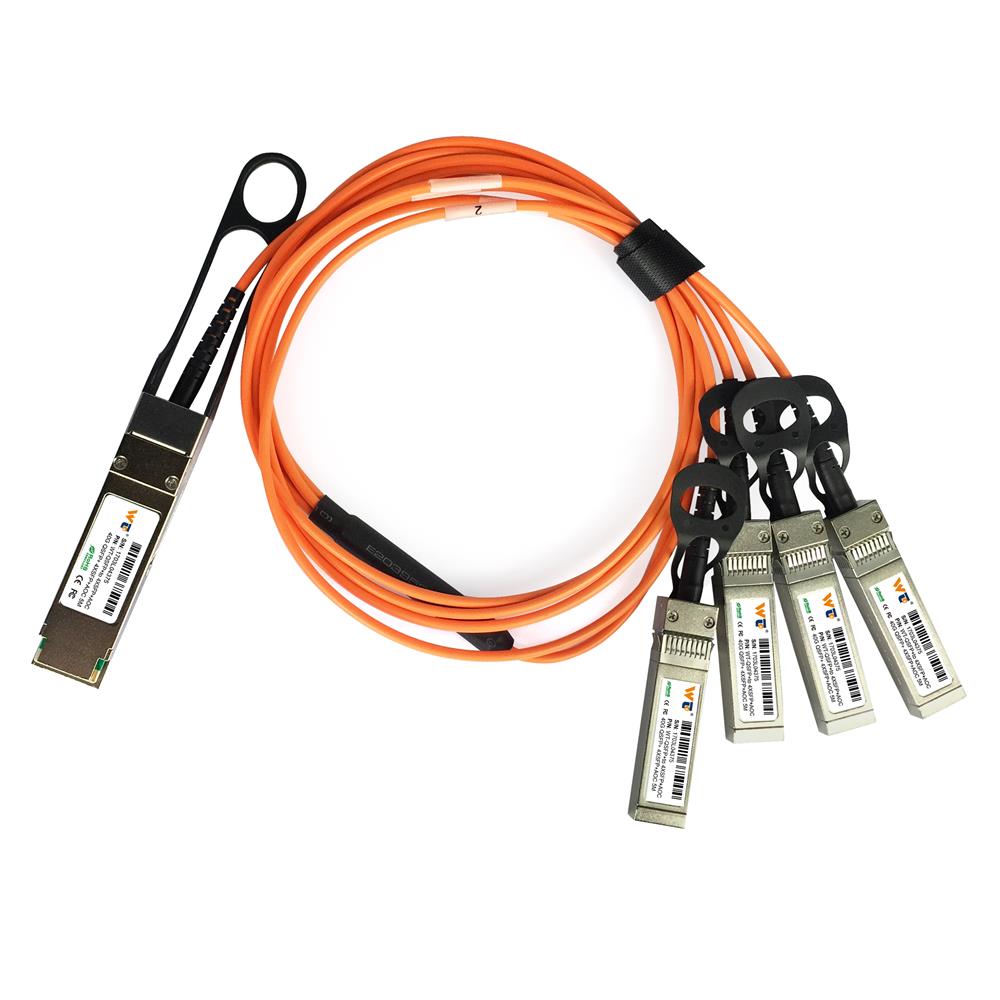

QSFP+ AOC end:
l Compliant to the 40GBASE-SR4 and XLPPI Specification per IEEE 802.3ba-2010 and supporting
l Compliant to the industry standard SFF-8436 QSFP+ Specification
l Power Level 1: Max Power < 1.5 W
l Operate at 10.3125 Gbps per channel with 64b/66bencoded data for 40GbE application and at 10 Gbps
Each 4× SFP+ end:
l Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
l Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”
l Maximum power dissipation 0.35W per end.
Active Optical Cable Assembly:
l 0 to 70 C degree case temperature operating range
l Proven High Reliability 850 nm technology: Wintop VCSEL transmitter and Wintop PIN receiver
l Hot pluggable for ease of servicing and installation
l Two Wire Serial interface
l Utilizes optical fiber for high density and thin, lightweight cable management
APPLICATIONS
l 40GbE and 10GbE break-out applications for Datacom switch and router connections
l 40G to 4×10G density applications for Datacom and Proprietary protocol applications
l Datacenter
SFP+ AOC end Mechanical Specifications
.png)
.png)
QSFP+ AOC end Mechanical Specifications
.png)
Active Cable-End Electrical Characteristics
The following characteristics are defined over the Recommended Operating Conditions unless otherwise noted. Typical values are for Tc = 40 °C, Vcc = 3.3 V
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
QSFP+ 40G Active Cable-End Power Consumption |
|
|
|
1.5 |
W |
|
QSFP+ 40G Active Cable-End Power Supply Current |
|
|
|
300 |
mA |
|
SFP+ 10G Active Cable-End Power Consumption |
|
|
|
0.35 |
W |
|
SFP+ 10G Active Cable-End Power Supply Current |
|
|
|
100 |
mA |
有关详细信息，请在“相关下载”中查看数据表
