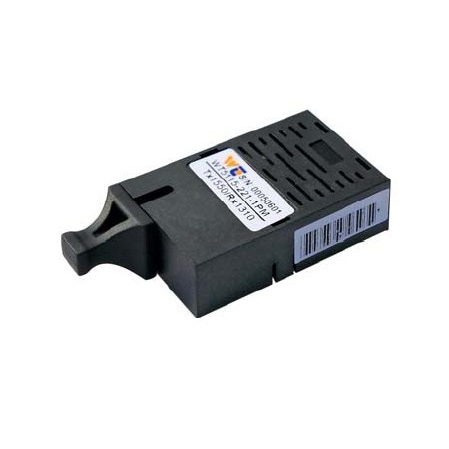

2.5G Single Fiber BIDI 1x9 Optical Transceiver
型号： 5414-331-1P、5416-231-1P
5414-331-1P
5416-231-1P
Feature
l 1×9 package with SC connector
l 1310nm DFB Tx/1550nm PIN Rx and
l 1550nm DFB TX/1310nm PIN RX
l 20Km transmission with SMF
l +3.3V single power supply
l LVPECL compatible data input/output interface
l Low EMI and excellent ESD protection
l laser safety standard IEC-60825 compliant
l Compatible with RoHS
Application
l OC-48 IR-1 / SDH STM S-16.1
l SONET OC-12 SR / SDH STM I-4
l SONET OC-3 SR / SDH STM I-1
l Gigabit Ethernet / 1x/2x Fibre Channel

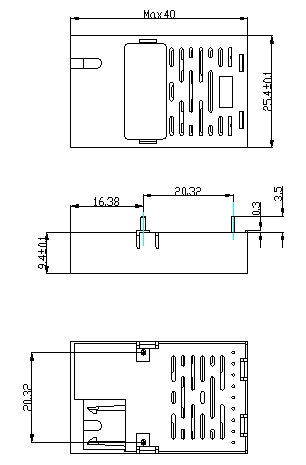

Mechanical Dimensions
.png)
Performance specifications
Absolute Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Storage Temperature |
Tst |
-40 |
+85 |
°C |
|
Operating Temperature |
Top |
0 |
+70 |
°C |
|
Supply Voltage |
Vcc |
0 |
+3.6 |
V |
|
Input voltage |
Vin |
GND |
Vcc |
|
|
Lead Soldering Temperature & Time |
240/10 |
°C/s |
||
Operation Environment
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
Vcc |
3.15 |
3.45 |
V |
|
Ambient operating Temperature |
Top |
0 |
+70 |
°C |
|
Operating Relative Humidity |
- |
5 |
95 |
% |
有关详细信息，请在“相关下载”中查看数据表
